Engine/Cylinder Block - Oil Pan for 1991 Honda ACCORD SEDAN

Select Cylinder Block - Oil Pan Part

1991 Honda ACCORD SEDAN

Change vehicle

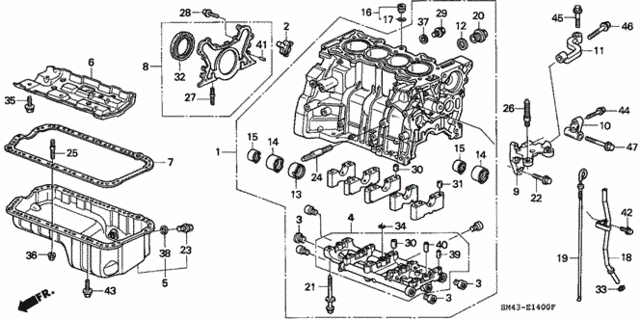

Engine/Cylinder Block - Oil Pan for 1991 Honda ACCORD SEDAN #1
No. Part # Part # / Description List Price Price
1 11000-PT0-020 11000-PT0-020 / Block Assembly, Cylinder

BLOCK ASSY., CYLINDER

$2,533.84 $1,773.69
1 11000-PT0-020 11000-PT0-020 / Block Assembly, Cylinder

BLOCK ASSY., CYLINDER

$2,533.84 $1,773.69
2 11109-PK2-010 11109-PK2-010 / Seal, Timing Rubber

$5.92 $4.14
3 11126-PK1-003 11126-PK1-003 / Bolt, Sealing (22MM)

$5.15 $3.61
4 11130-PT0-030 11130-PT0-030 / Bridge, Bearing Cap

- -
5 11200-PT0-010 11200-PT0-010 / Pan, Oil

$125.50 $87.85
7 11251-P0A-000 11251-P0A-000 / Gasket, Oil Pan

$55.03 $38.52
8 11300-PT0-000 11300-PT0-000 / Cover Assembly, R Side

COVER ASSY., R. SIDE

- -
9 11910-PT0-020 11910-PT0-020 / Bracket, Engine Mounting

- -
10 11912-PT0-000 11912-PT0-000 / Stay A, Engine Mounting Bracket

$20.00 $14.00
12 12207-634-300 12207-634-300 / Washer, Sealing Bolt

$4.67 $3.27
13 13421-PT0-003 13421-PT0-003 / Metal, Balancer Shaft (No.1) (Daido)

$30.42 $21.29
14 13422-PT0-013 13422-PT0-013 / Metal, Balancer Shaft (No.2) (Daido)

$30.42 $21.29
15 13423-PT0-003 13423-PT0-003 / Metal, Balancer Shaft (No.3) (Daido)

$30.42 $21.29
16 15140-PH3-000 15140-PH3-000 / Orifice Assembly, Oil Control

ORIFICE ASSY., OIL CONTROL

$10.83 $7.58
17 15142-PH3-003 15142-PH3-003 / O-Ring (10.8X2.4) (Arai)

$2.56 $1.79
18 15200-PT0-000 15200-PT0-000 / Pipe, Oil Level

- -
19 15650-PT0-003 15650-PT0-003 / Dipstick, Oil

- -
20 90001-PM3-003 90001-PM3-003 / Bolt, Drain Plug (28MM)

$16.88 $11.82
21 90007-PAA-T01 90007-PAA-T01 / Bolt-Washer (11X121)

$8.95 $6.27
22 90008-PM3-000 90008-PM3-000 / Bolt, Mounting Bracket (10X32.5)

$6.18 $4.33
23 90009-PH1-000 90009-PH1-000 / Bolt, Drain Plug (14MM)

$2.33 $1.63
24 90030-PT0-000 90030-PT0-000 / Bolt, Stud (10X35)

$8.03 $5.62
27 90041-PA5-000 90041-PA5-000 / Bolt, Stud (6X28)

$3.48 $2.44
26 90041-PT0-000 90041-PT0-000 / Bolt, Stud (12X60)

$5.70 $3.99
28 90051-PH7-000 90051-PH7-000 / Bolt, Flange (6X18)

$4.08 $2.86
29 90061-PT0-000 90061-PT0-000 / Bolt, Drain Plug (12MM)

$6.18 $4.33
30 90705-PT0-000 90705-PT0-000 / Pin, Dowel (16X22)

$2.70 $1.89
31 90715-PC6-000 90715-PC6-000 / Pin, Dowel (13X20)

$4.23 $2.96
32 91214-PLE-003 91214-PLE-003 / Oil Seal (80X100X10) (Nok)

$28.53 $19.97
32 91214-PLE-003 91214-PLE-003 / Oil Seal (80X100X10) (Nok)

OIL SEAL (80X100X10) (ARAI)

$28.53 $19.97
33 91309-PJ7-010 91309-PJ7-010 / O-Ring (11.5X3.5)

$2.48 $1.74
34 91323-PH7-003 91323-PH7-003 / Gasket, Bearing Cap Bridge (Arai)

$2.68 $1.88
36 94050-06080 94050-06080 / Nut, Flange (6MM)

$0.48 $0.34
37 94109-12000 94109-12000 / Washer, Drain Plug (12MM)

$0.83 $0.58
38 94109-14000 94109-14000 / Washer, Drain Plug (14MM)

$0.52 $0.36
39 94301-10160 94301-10160 / Pin, Dowel (10X16)

$1.62 $1.13
40 94301-12200 94301-12200 / Pin, Dowel (12X20)

$1.62 $1.13
41 94303-06100 94303-06100 / Pin, Dowel (6X10)

$1.47 $1.03
42 93401-06012-08 93401-06012-08 / Bolt-Washer (6X12)

$1.18 $0.83
43 95701-06018-08 95701-06018-08 / Bolt, Flange (6X18)

$1.18 $0.83
44 95701-08040-08 95701-08040-08 / Bolt, Flange (8X40)

$1.70 $1.19
47 95701-10060-08 95701-10060-08 / Bolt, Flange (10X60)

$2.07 $1.45
